MINLEON'S RGBW-Pro Flex Strip

In association with BlueHopper

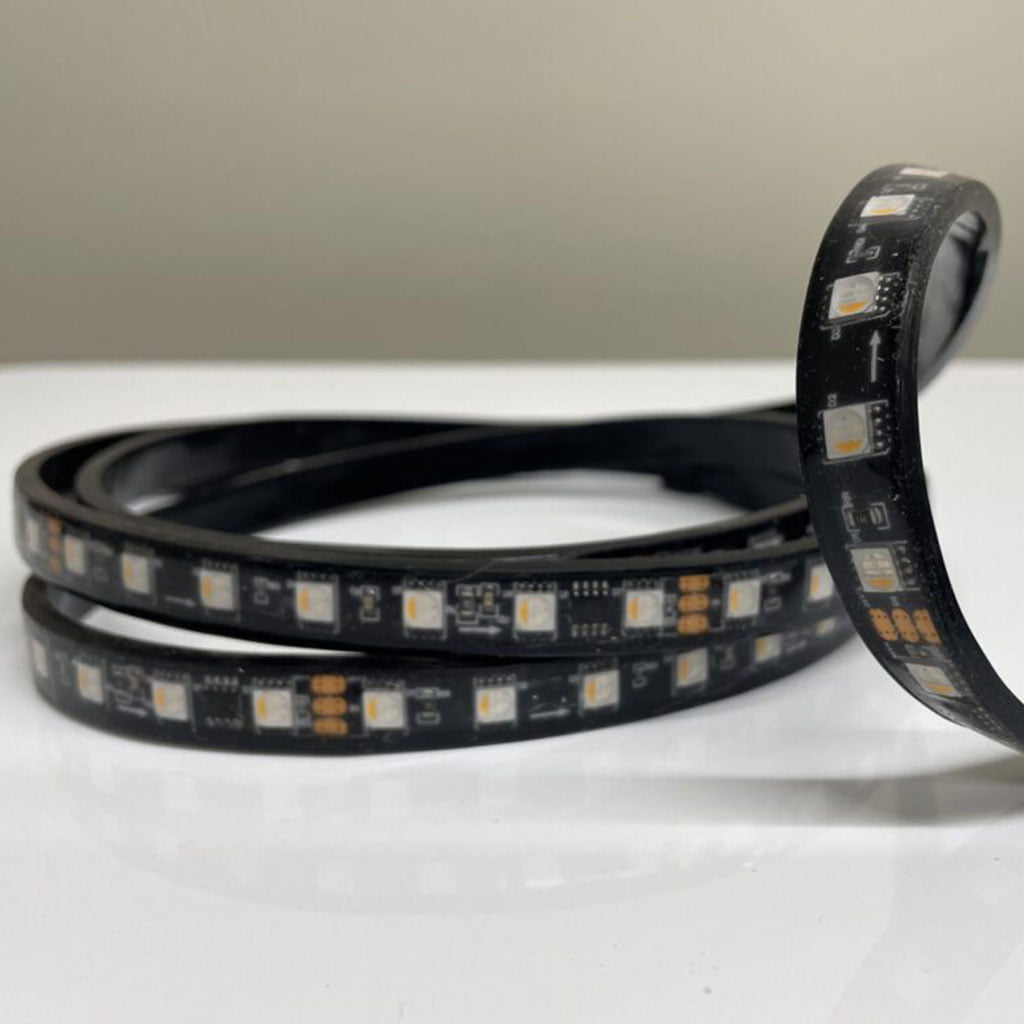

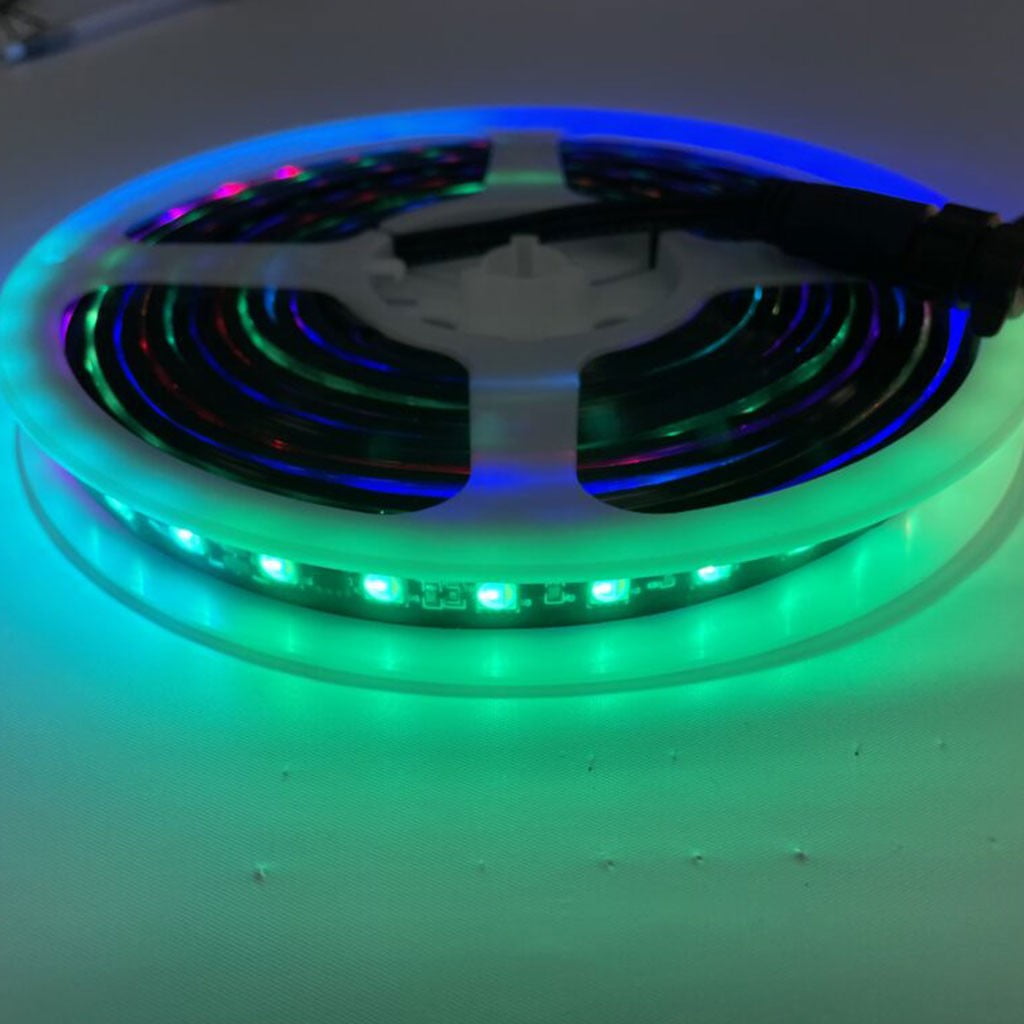

Indoor and outdoor-rated, addressable flexible strip. RGBW, 24VDC, 7-to-1 LED to chip ratio, 16-bit dimming curve. Black backing to blend in dark areas when not lit. Cuttable.

Options

IP Rating:  IP65 with full silicone cover, or non-IP indoor version

RGBW 24VDC or RGB 12VDC (with white backing, and 2-to-1 LED to chip ratio).

Length:  5-meter (standard),  1-meter, 10-meters, custom

RGBBulletPixel-Data-Sheet

Features and Advantages:

Individual-Control-Options
4-inch Controllable Cubes
Outdoor-Ready-and-UL-Listed
Smooth 16-bit Dimming
Safe-Trimming-Marks
Slick Video Appearance
140-Dual-RGB-LEDs
MeshTek & BlueHopper Compatible
Individually-Addressable
Customizable Lead Wire
Customizable-Length
Multiple Wire Colors

General Specifications:

Output

LED Type

SMD 5050

LED Channels

R-G-B

LED Count

70 per meter (3.3-FT)

LED-to-Chip Raio

7-to-1 (10 IC’s per meter)

Viewing Angle

360-degrees

Control

Individually Addressable

each set of 7 LED’s

Control Systems

MeshTek 1-Port and 4 Port Controllers with BlueRoots App

Max Distance before Power Injection

10 meters (approx. 33-FT)

Electrical & Safety

Input Voltage

24 VDC

Current

0.15 Amps / meter

Power

3.6 Watts / meter

Wire

20 AWG, 3C, UV protected

Inline power injection

via Minleon Power T+’s & RGB+5A-12V

Physical

Weight

1-inch

LED Pitch

1-inch

Housing

silicone over black pcb

Connector Type

LLT twist-lock

Lead/End Wire length

6” (standard)

Operating Temperature

Neg -20 to +50 Cel. / Neg -4 to +122 Far.
