INTELLIGENT LED

Minleon's TrikLit 100’s

In association with BlueHopper

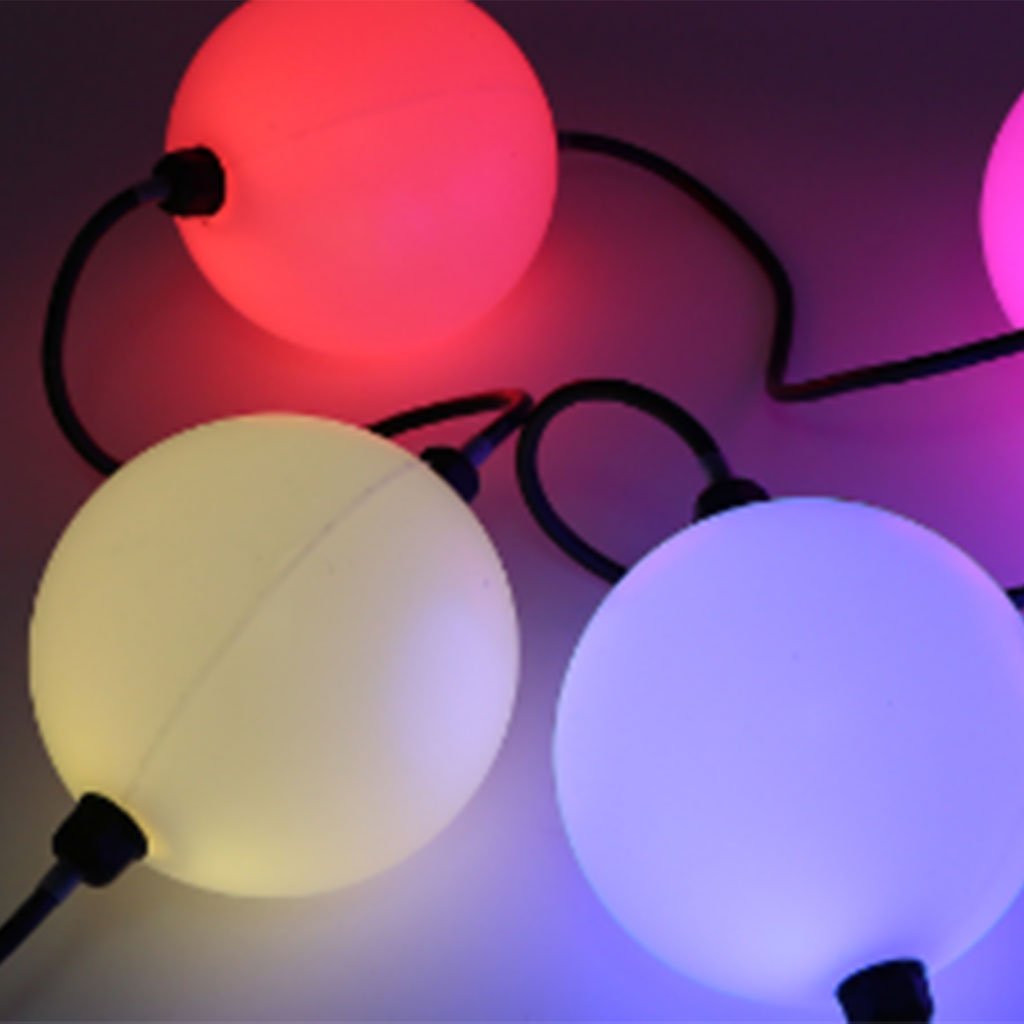

Minleon’s flagship RGB strand, is individually controllable 2 x RGB(W) pixels for nice even colors and brightness. Your favorite Meshtek controller, or Minleon WEC or NEC stock controllers create smooth effects with a 16-bits per channel. Sturdy, professional and commercial construction with insulated wire for 4-season, permanent installations. Custom lengths and pitches available in 3 different diameter bulbs.

Pro Tips

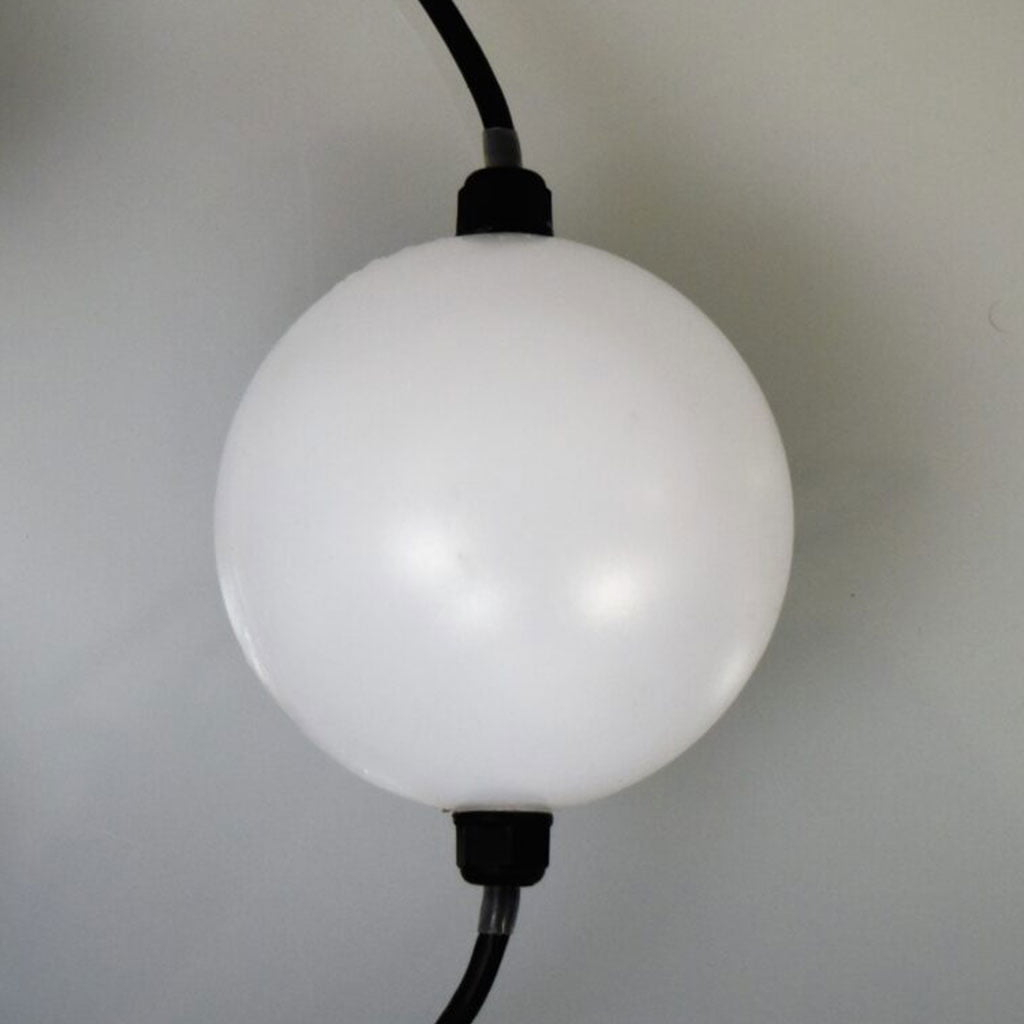

100 refers to 100mm.  100mm = 4-inch diameter bulb.

When calculating your power requirements, keep in mind that TrikLit 100’s take 4x the power of G42 TrikLits and G28 Mini-TrikLits, as they have 4x the RGB-LEDs in each bulb.

Options

Pixel spacing: 6″, 12″, 24″
Light counts: 5, 10, 25, or custom with MOQ
Wire color: black, green, white
Thru connector: female thru or terminated with eye-hole loop

RGBBulletPixel-Data-Sheet

Features and Advantages:

Individual-Control-Options
4-inch Controllable Cubes
Outdoor-Ready-and-UL-Listed
Smooth 16-bit Dimming
Safe-Trimming-Marks
Slick Video Appearance
140-Dual-RGB-LEDs
MeshTek & BlueHopper Compatible
Individually-Addressable
Customizable Lead Wire
Customizable-Length
Multiple Wire Colors

General Specifications:

Output

LED Type

SMD5050

LED Channels

R-G-B

LED Quantity

8

Greyscale

16-bit, 65,536 dimming levels*

Viewing Angle

360-degrees

Control

Individually Addressable

yes

Control Systems

MeshTek 1-Port and 4 Port Controllers with BlueRoots App

Max Lights before power injection

approx. 30L

Max Distance before Power Injection

approx. 25-feet

Electrical & Safety

Input Voltage

12 VDC

Current

0.112 Amps

Power

1.344 Watts

Wire

22 AWG, 3C, UV protected

Inline power injection

via Minleon Power T+’s & RGB
+5A-12V

Certifications

(c)UL listed, IP 65

Physical

Diameter (mm)

100mm

Weight

approx. 3.2 oz. per bulb

Housing

polycarbonate

Bulb Style

frosted

Connector Type

LLT twist-lock

Operating Temperature

Neg -20 to +50 Cel. / Neg -4 to +122 Far.

35+ Patents Supporting Our Automation Platform

8,890,435;

8,896,232;

8,742,694;

8,896,218;

9,295,144;

9,133,528;

8,896,232;

9,967,960;

10,321,541;
