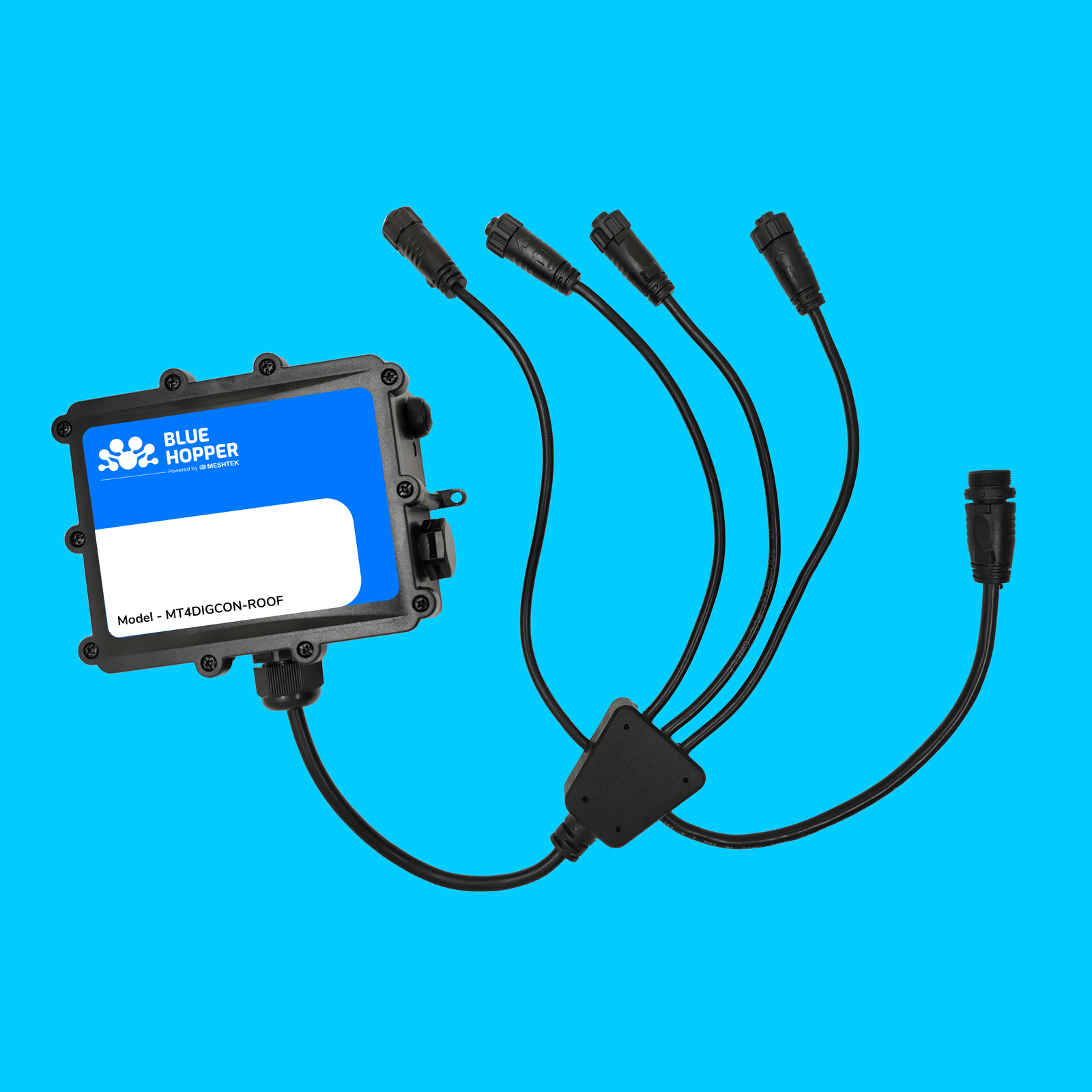

MeshTek Controller For Minleon Lighting (Model: MT4DIGCON)

Introducing the new controller, expertly designed for ALL Minleon’s lighting products! Priced at approximately $140 through your distributor, this controller now includes a scalable ONE-TIME software, database, and maintenance fee of just $1 per light capped at $300 fee. This structure ensures peak performance with continuous updates, while remaining affordable for smaller installations and proportionate to the total number of lights connected.

This controller supports all the digitally addressable chipsets and products from Minleon.

Features and Advantages:

Individual-Control-Options
4-inch Controllable Cubes
Outdoor-Ready-and-UL-Listed
Smooth 16-bit Dimming
Safe-Trimming-Marks
Slick Video Appearance
140-Dual-RGB-LEDs
MeshTek & BlueHopper Compatible
Individually-Addressable
Customizable Lead Wire
Customizable-Length
Multiple Wire Colors

General Specifications:

Input Voltage

8 VDC – 36 VDC

Driving Current Rating

0 – 4 A per channel

No. Of Channel Supported

2 Channel

Control Method

Bluetooth Mesh Via SmartPhone or Meshtek Gateway

Open Air Control Range

Up to 200m

Scheduling

Weekly, Annually, Calendar Wise

Effects and scenes Programming

20+ and customizable for speed & Colors

IP Rating

IP65

Certifications

FCC, IC

Dimensions(mm)

120 x 102 x 55 mm
