INTELLIGENT LED
Minleon's Diamond Pixels
In association with BlueHopper

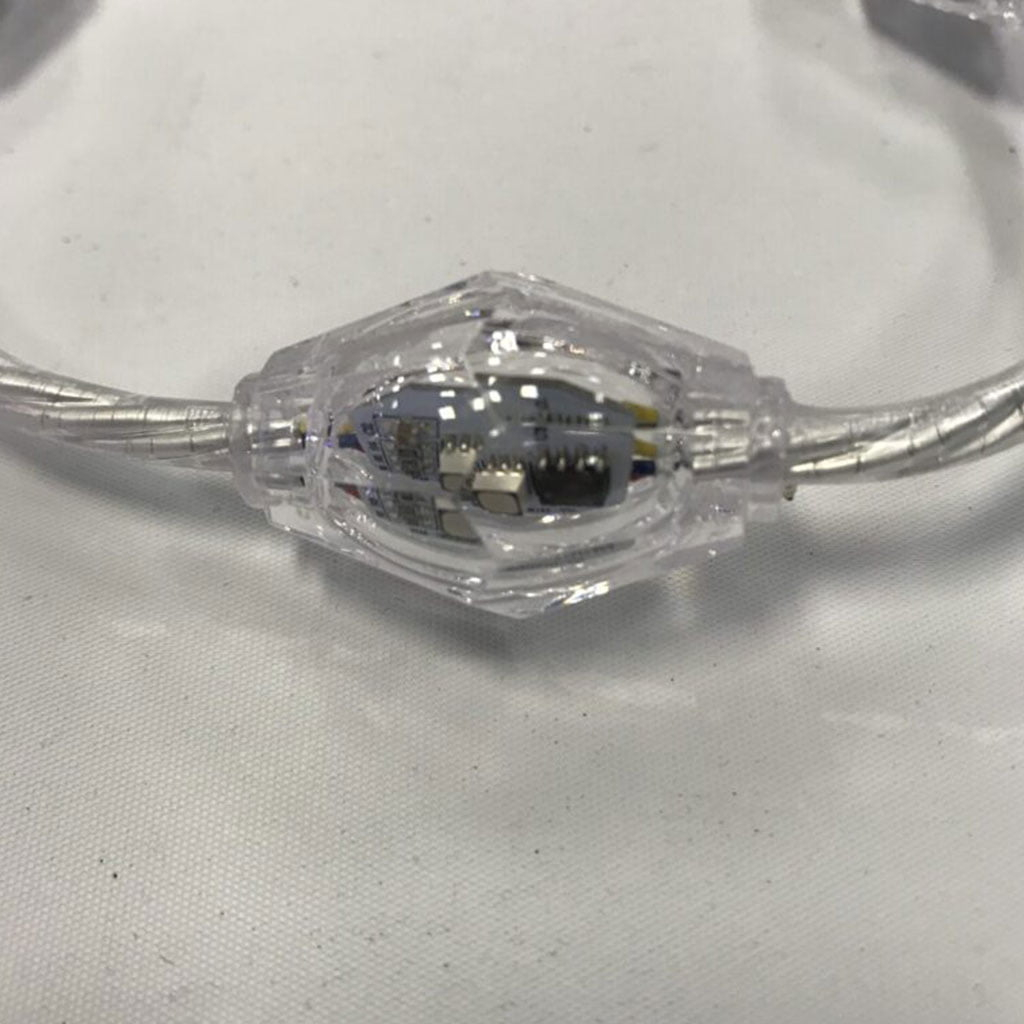

Double-sided RGB-LEDs behind a riveted bulb give Minleon’s Diamond Pixels a twinkle lacking in other RGB strings, even when on a static color. Meshtek controllers drive the individually addressable pixels.
Options
Wire color: clear, white, black, green
Bulb spacing: 4-, 6-, 12-inch & custom
Features and Advantages:
4-inch Controllable Cubes
Smooth 16-bit Dimming
Slick Video Appearance
MeshTek & BlueHopper Compatible
Customizable Lead Wire
Multiple Wire Colors
General Specifications:
Output
LED Type
SMD3535
LED Channels
R-G-B
LED Count
16-bit, 65,536 dimming levels*
LED Quantity
2
Control
Individually Addressable
yes
Control Systems
MeshTek 1-Port and 4 Port Controllers with BlueRoots App
Max Lights before power injection
approx. 125L
Max Distance before Power Injection
approx. 100-feet
Electrical & Safety
Input Voltage
12 VDC
Current
0.028 Amps
Power
0.336 Watts
Wire
20 AWG, 3C, UV protected
Inline power injection
via Minleon Power T+’s & RGB+5A-12V
Certifications
(c)UL listed, CE
Physical
Size
34mm x 22 mm
Housing
polycarbonate
Connector Type
LLT twist-lock
Operating Temperature
Neg -20 to +50 Cel. / Neg -4 to +122
Far
