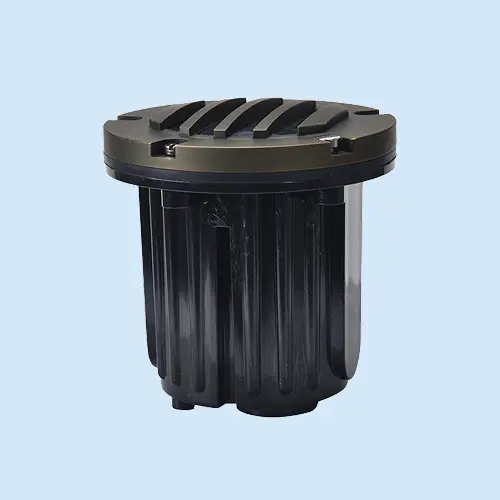

BH2202B Grated In-Ground MR16 Well Light

Fixture:
The BH2202B Grated In-Ground Well Light is a premium outdoor lighting fixture designed for public gardens, tree gaps, pathways, and open squares. This model features a stylish grated faceplate and a sealed canister structure, allowing for easy and secure installation even in harsh environments. The brass top with a seal ring enhances protection against moisture and outdoor elements.
Backed by a Lifetime Limited Warranty, this fixture is built for long-term reliability and performance.

Bulb:
The BH2202B uses MR16 bulbs, delivering efficient and focused lighting ideal for in-ground landscape applications.
Includes a 3-Year Limited Warranty on the bulb.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) svt, 18/2c gauge

Material

Finish: Antique Bronze

Housing: Non-corrosive ploymer

Lid: Die cast brass, attached with 5 staineless steel screws

Lens: Clear flat lens

Socket: Fixed GU 5.3 bi pin socket

Optional Lenses: Frosted lens, hex louver.

General Specifications:

P/N

BH2202B

In put Voltage

9-17V AC/DC

Lighting source

MR16 (sold separately)

Power Supply

Low Voltage Transformer (sold separately)

Output Lumens

According to MR16

Beam Angle

According to MR16

Color Temperature (CCT)

According to MR16

Color Rendering Index (Ra)

According to MR16

Working Temperature

-45-45

Water Proof

IP65

Certifications

ETL

Package Size

5.3″×5.3″×6.7″

Gross Weight

2.20LB

Warranty

Surface 10 years, Structure Lifetime
