THE SPECTRA 2xRGB + W NUGGET
THE SPECTRA 2xRGB + W NUGGET
The best front-facing solution.

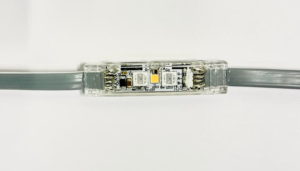

The Spectra is BlueHopper’s advanced RGBW nugget, purpose-built for front-facing and roofline applications. Its 2xRGB + W layout is an engineering rethink, not a relabel — pairing two high-efficiency RGB emitters with a dedicated warm-white channel in a single connectorized nugget.
The dedicated 3000K white channel runs independently of the color channels, so warm white output never has to borrow from red, green, or blue. Every nugget runs on BlueHopper’s HyperLux firmware for verified, consistent output across the run.
2x RGB – Two high-efficiency emitters per nugget
Our verified ~42 lm Spectra output.
Plug and Play Solution Easy to Install and Setup
Digitally Addressable RGB LED Based
Works with MeshTek's Advanced Bluetooth Mesh Controller & Apps
Dual DATA Line Technology for Industry's Highest Reliability
Weatherproof Lighting
HyperLux® LED Technology for High Lumens on Every Color
One Controller Supports up to 800 Nuggets in 4 Directions
UV-Protected Patented Track System Invisible During Daytime
HyperLux® Verified Output
Flexible Voltage & Power Insertion
Fully Compatible with Existing System
10+ Applications
Most Efficient on Curves
Most Versatile Track System
| Input Voltage Range | 8V – 48VDC |
|---|---|
| Standard Supply Voltage | 24V DC (using MeshTek provided 24V DC MeanWell Power Supply) |
| Operating Temperature | Min: -22°F to 140°F |
| Dimensions (mm) | 50×11.4×8.9 (+/-0.2 mm) |
| LED Type | Digitally addressable RGBW |
| Color (Nugget) | Clear |
| IP Rating | IP65 |
| Light Output | 16 million colors and dimmable |
| Whites Color Temperature Range | 3000K to 7500K |
| HyperLux Technology* | Yes |
| Track System | UV-protected track with base and lid |
Lumen Truth Table (Spectra vs. Ordinary Puck)
it's already self-contained with the white-channel callout (42 lm vs. 19 lm).
| Channel | Spectra | Ordinary Puck | Spectra vs Ord. |
|---|---|---|---|
| Red | 14.40 | 5.40 | 2.67X |
| Green | 24.00 | 14.70 | 1.63X |
| Blue | 6.20 | 3.57 | 1.74X |
| White | 42.00 | 18.90 | 2.22X |
| Voltage | 24V/36V/48V | 12V/24V | -- |
| Power Insertion | 300/500/700 lights | 36/72 lights | -- |
| Price | Login to store | ||

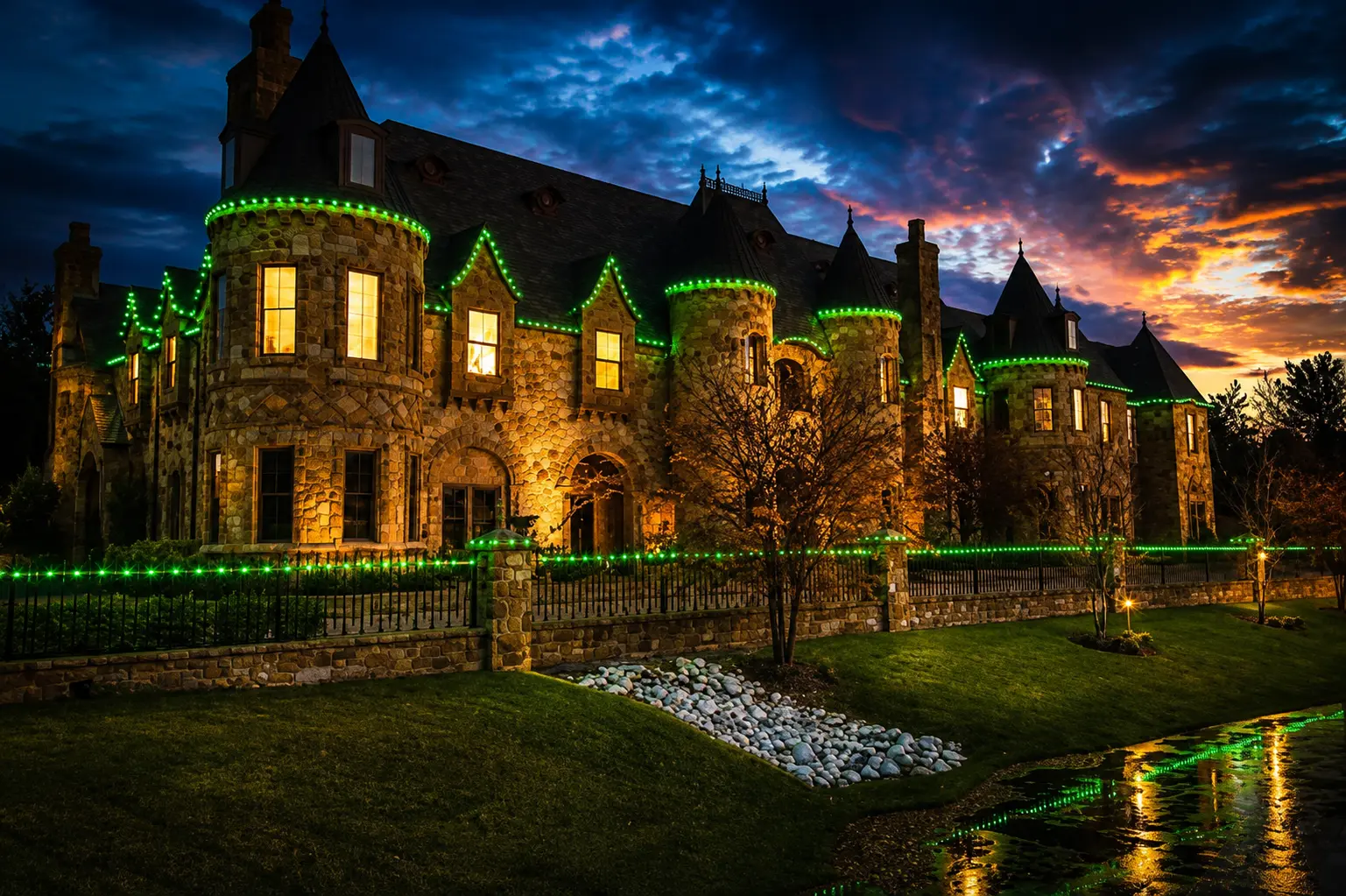

Most Efficient on Curves

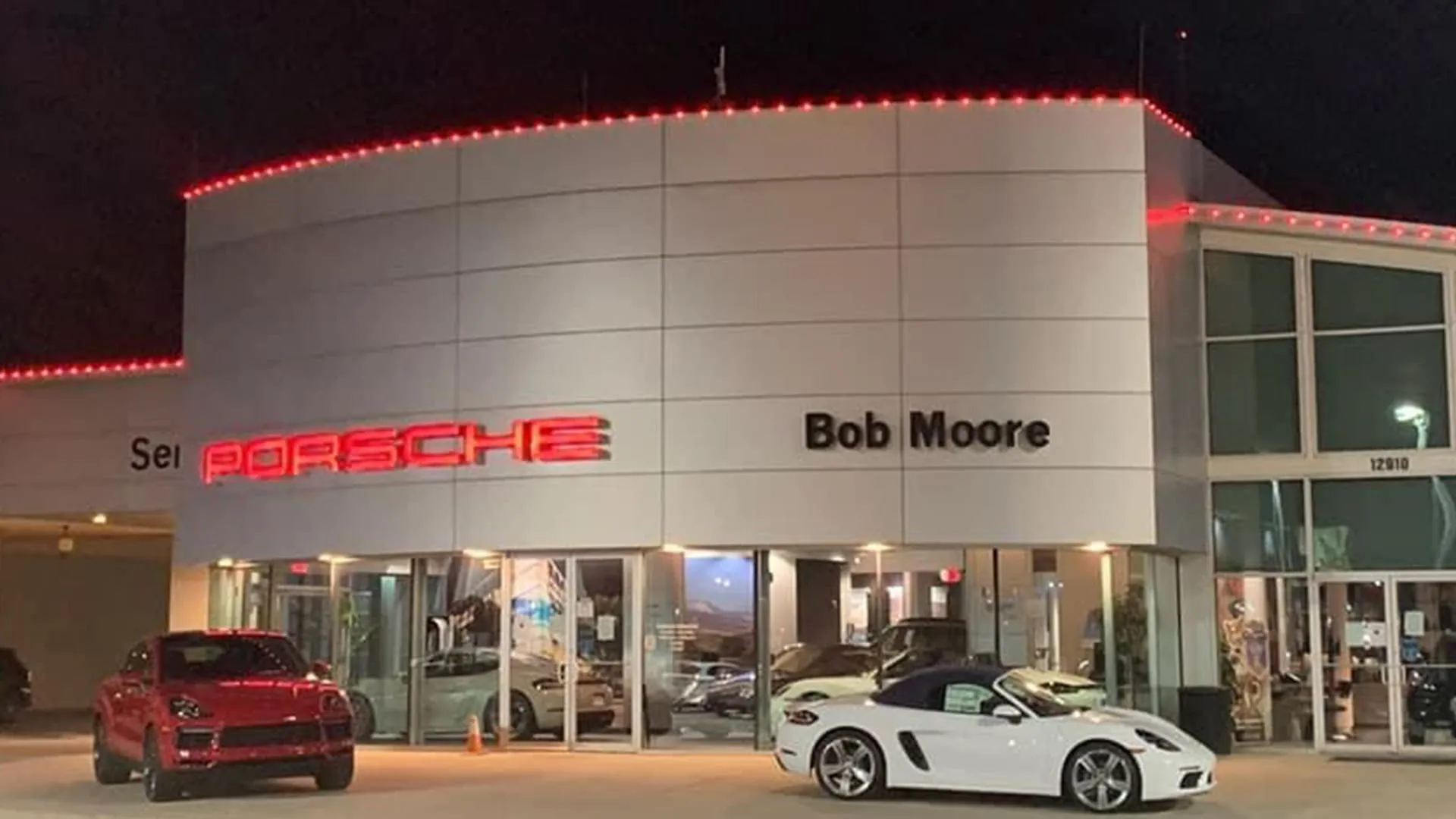

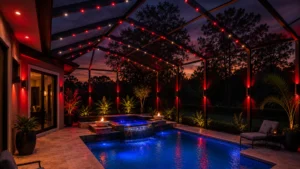

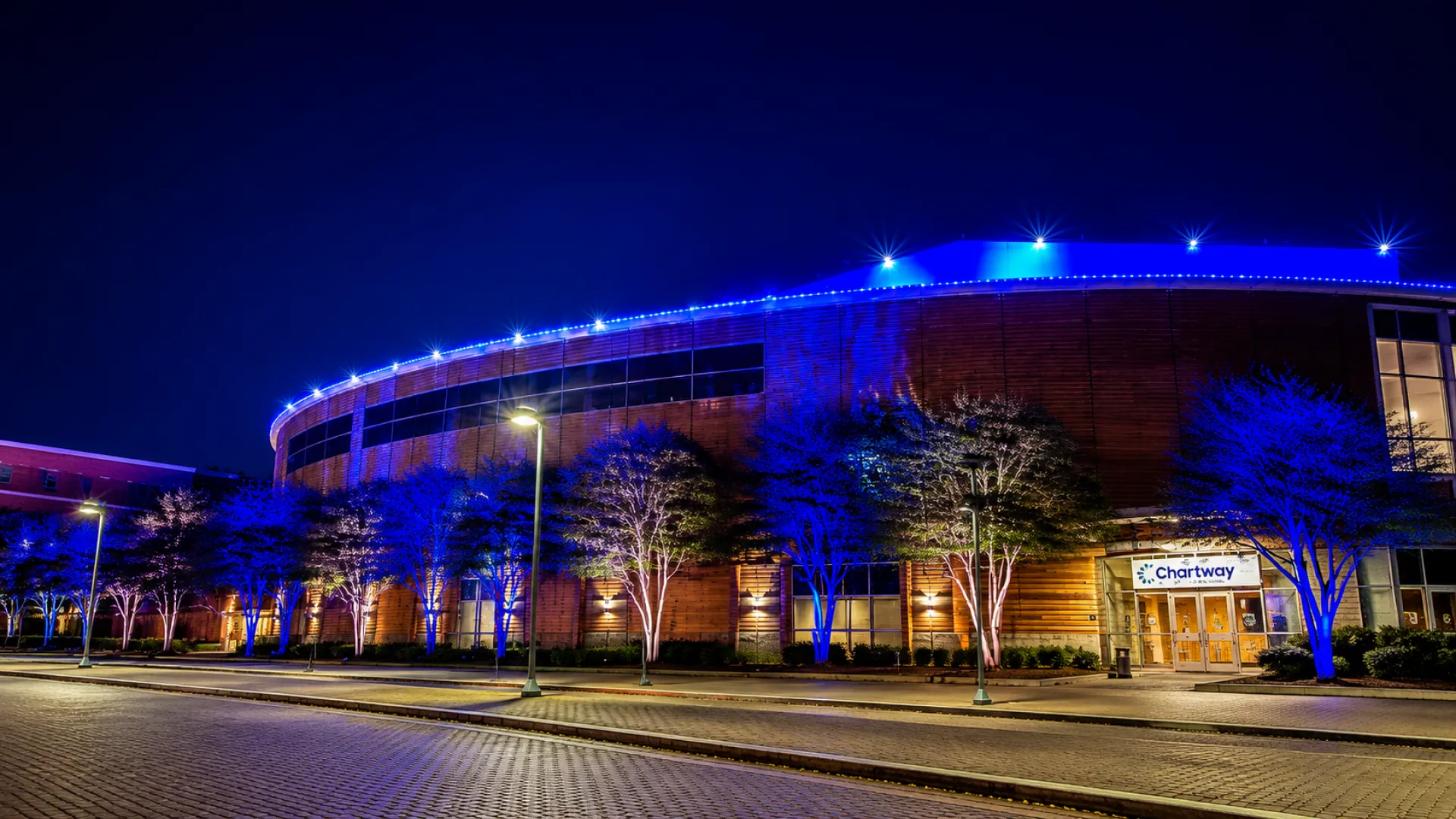

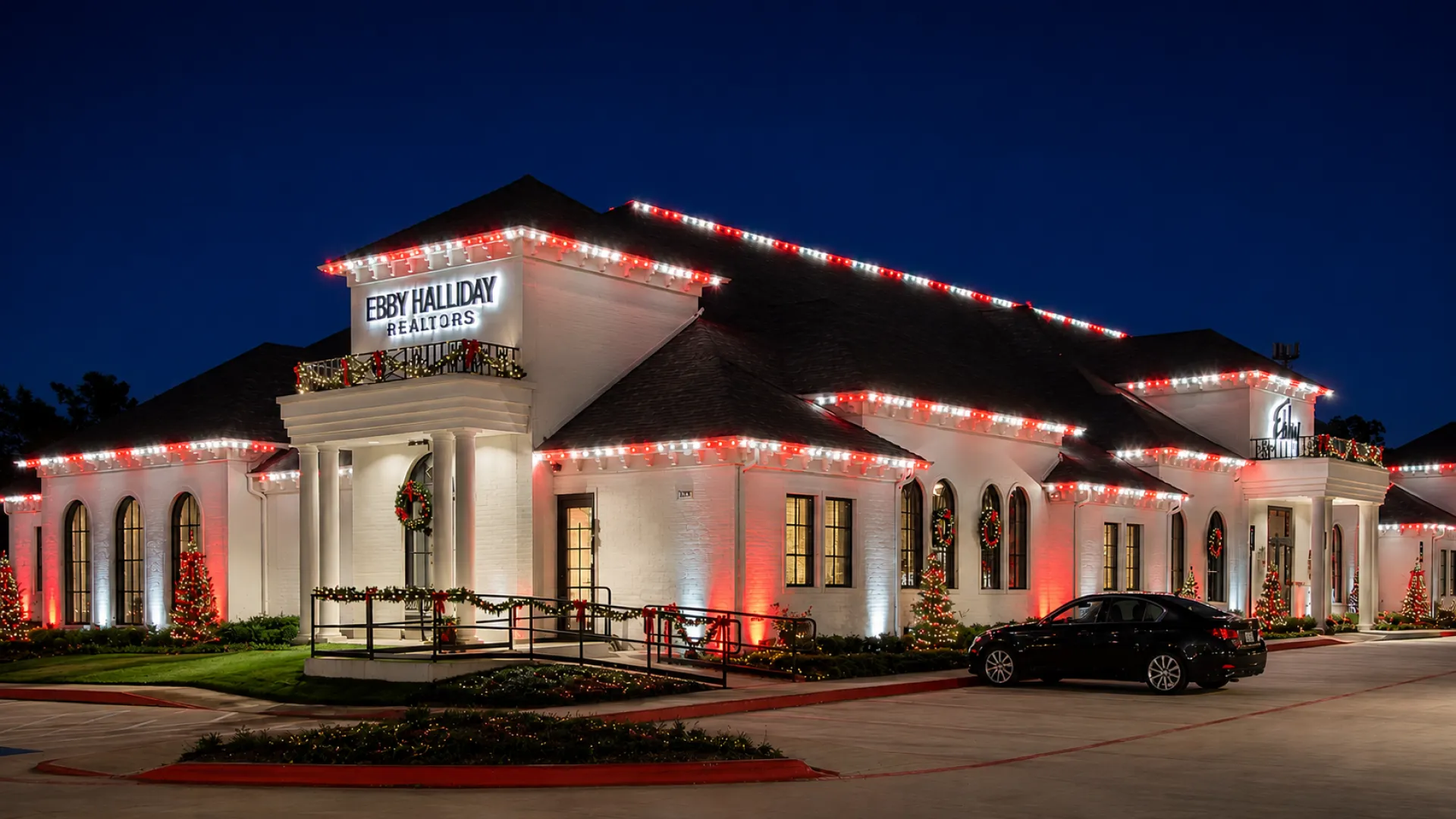

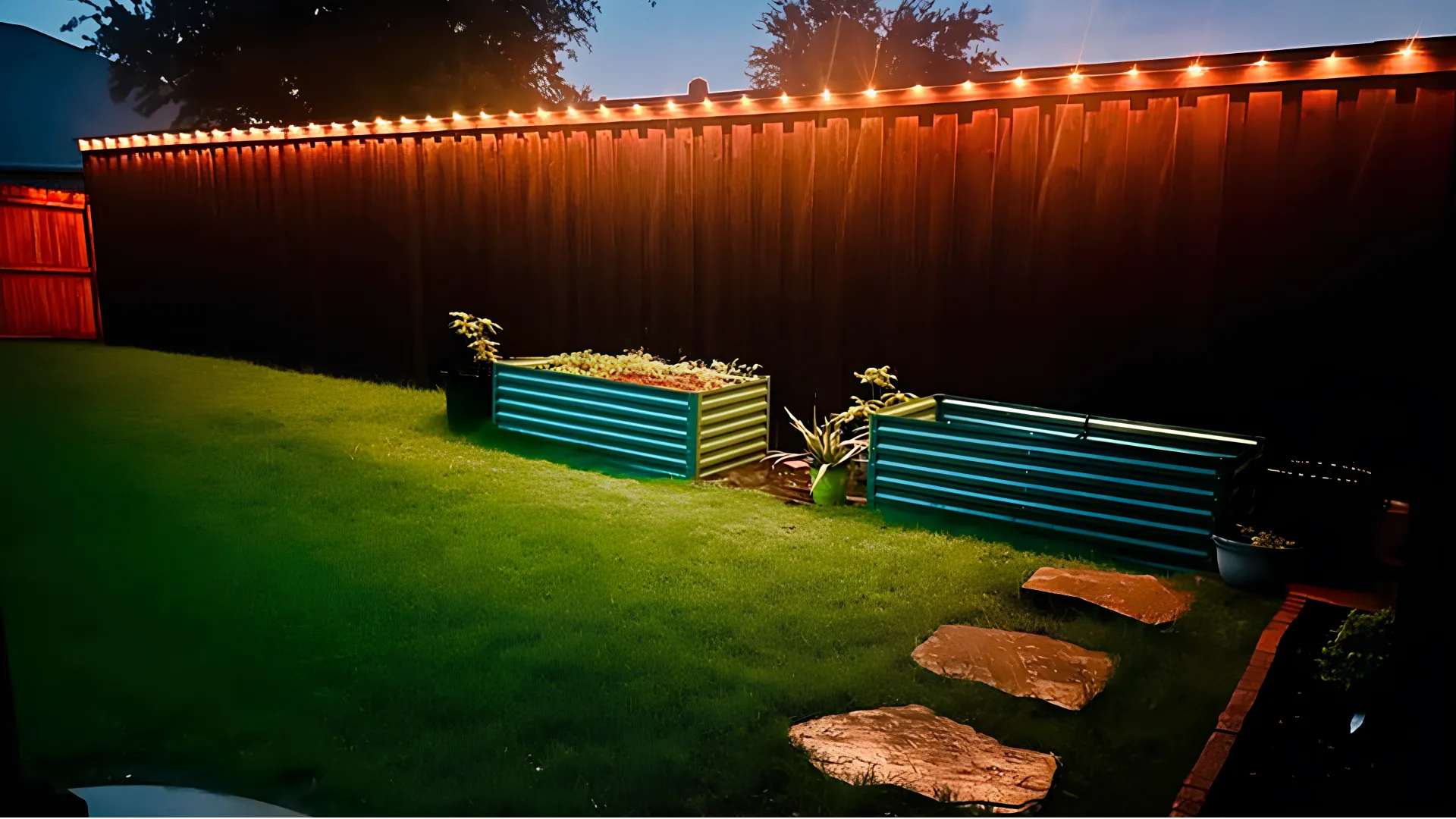

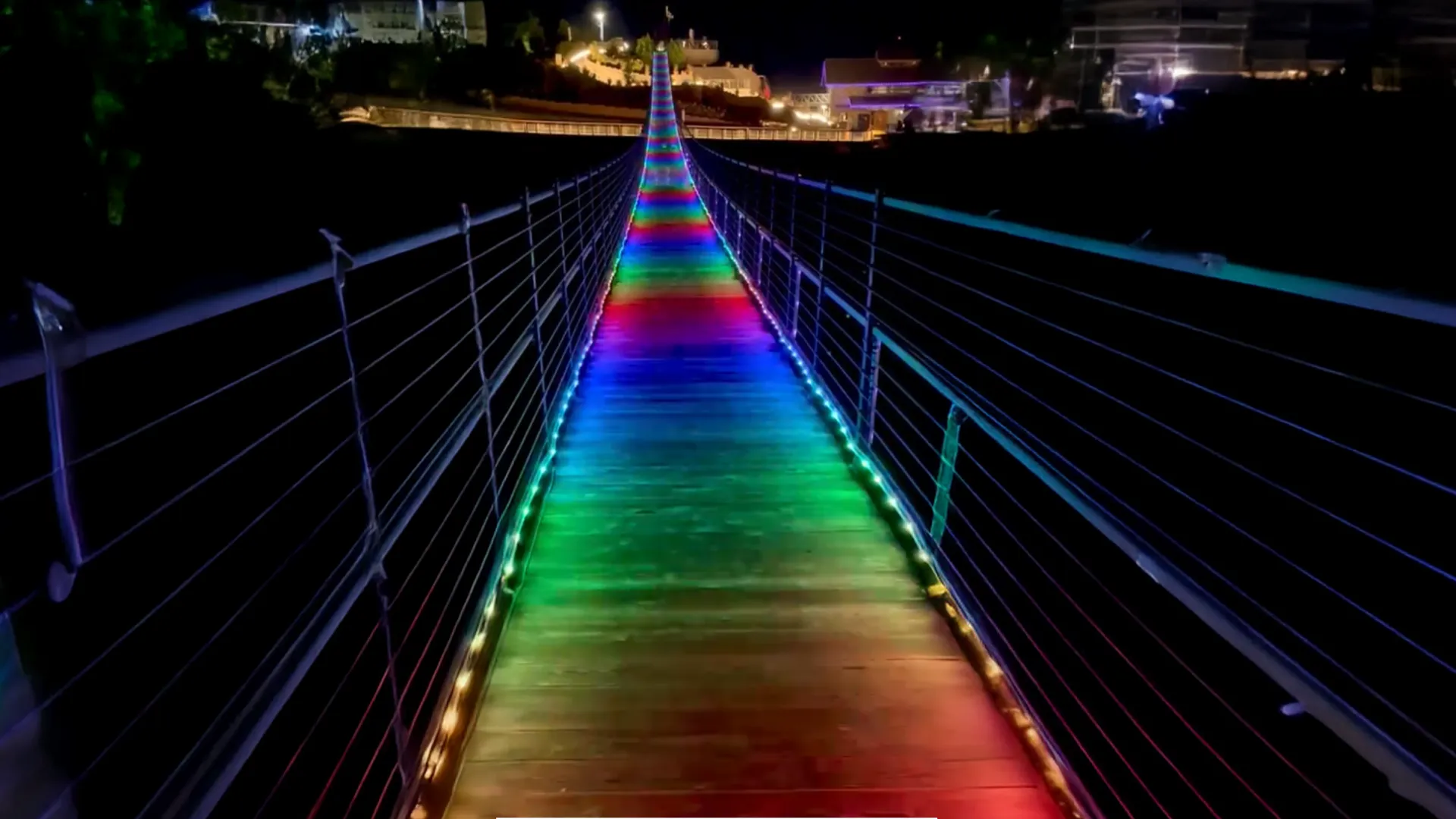

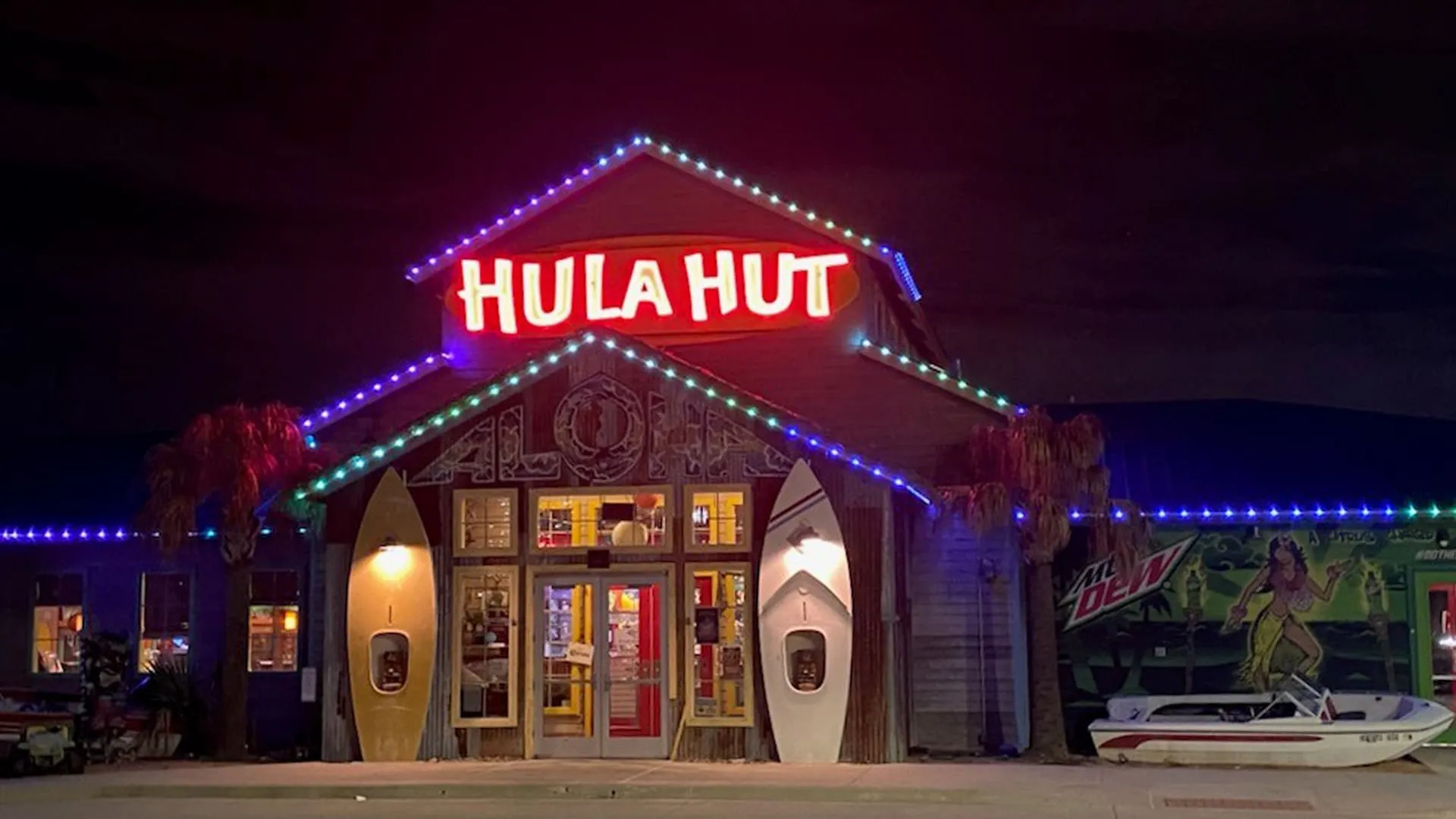

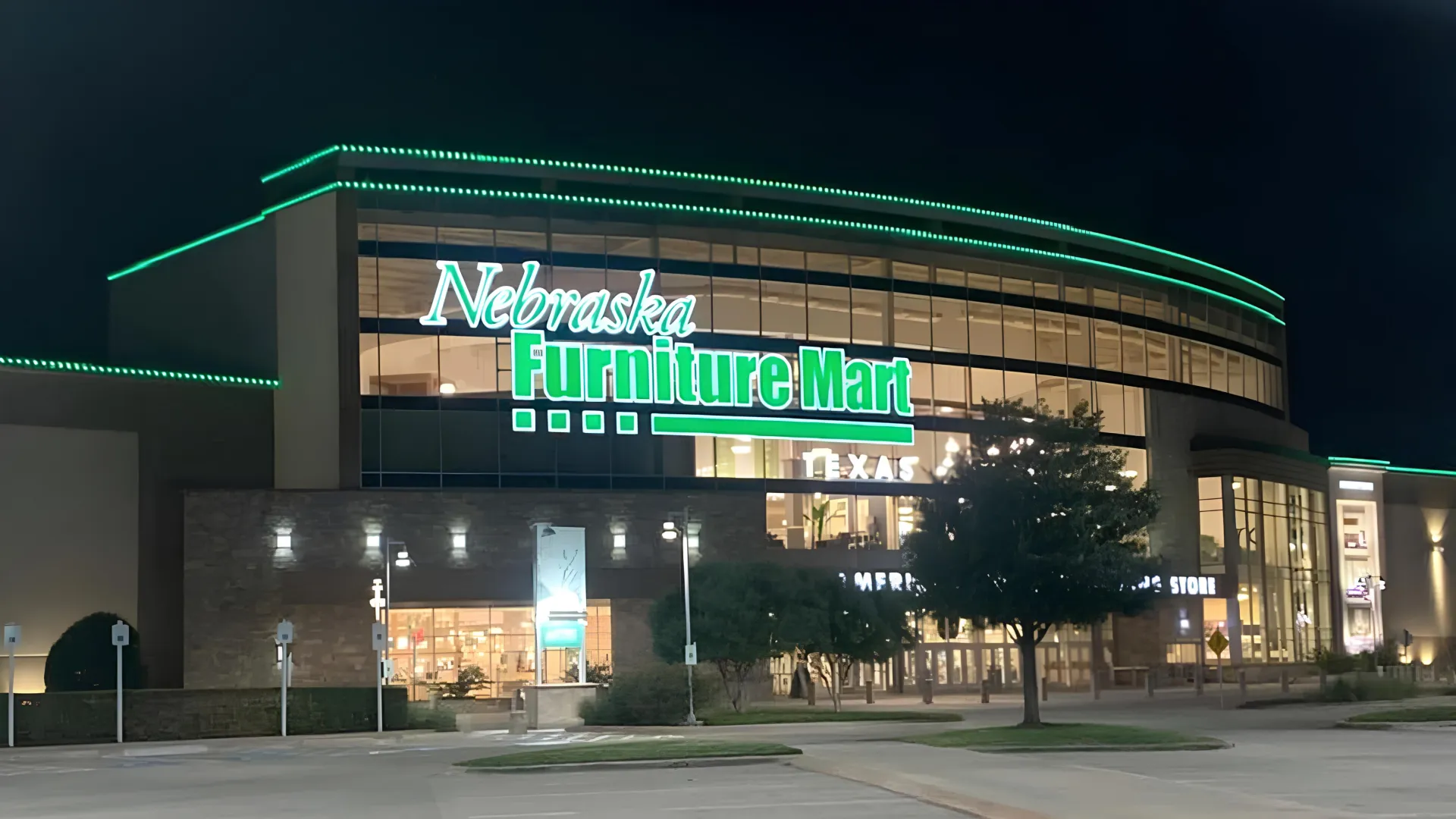

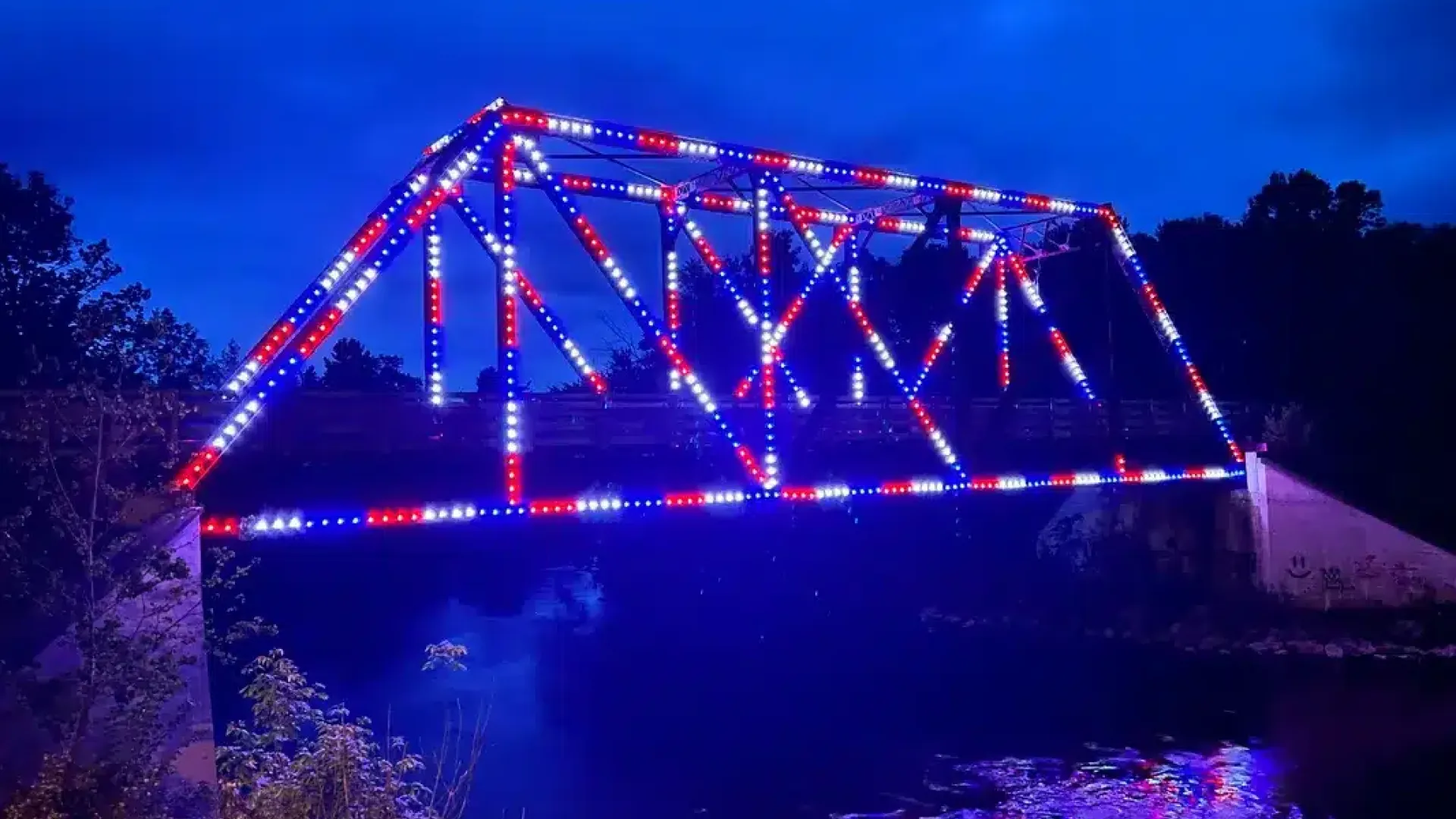

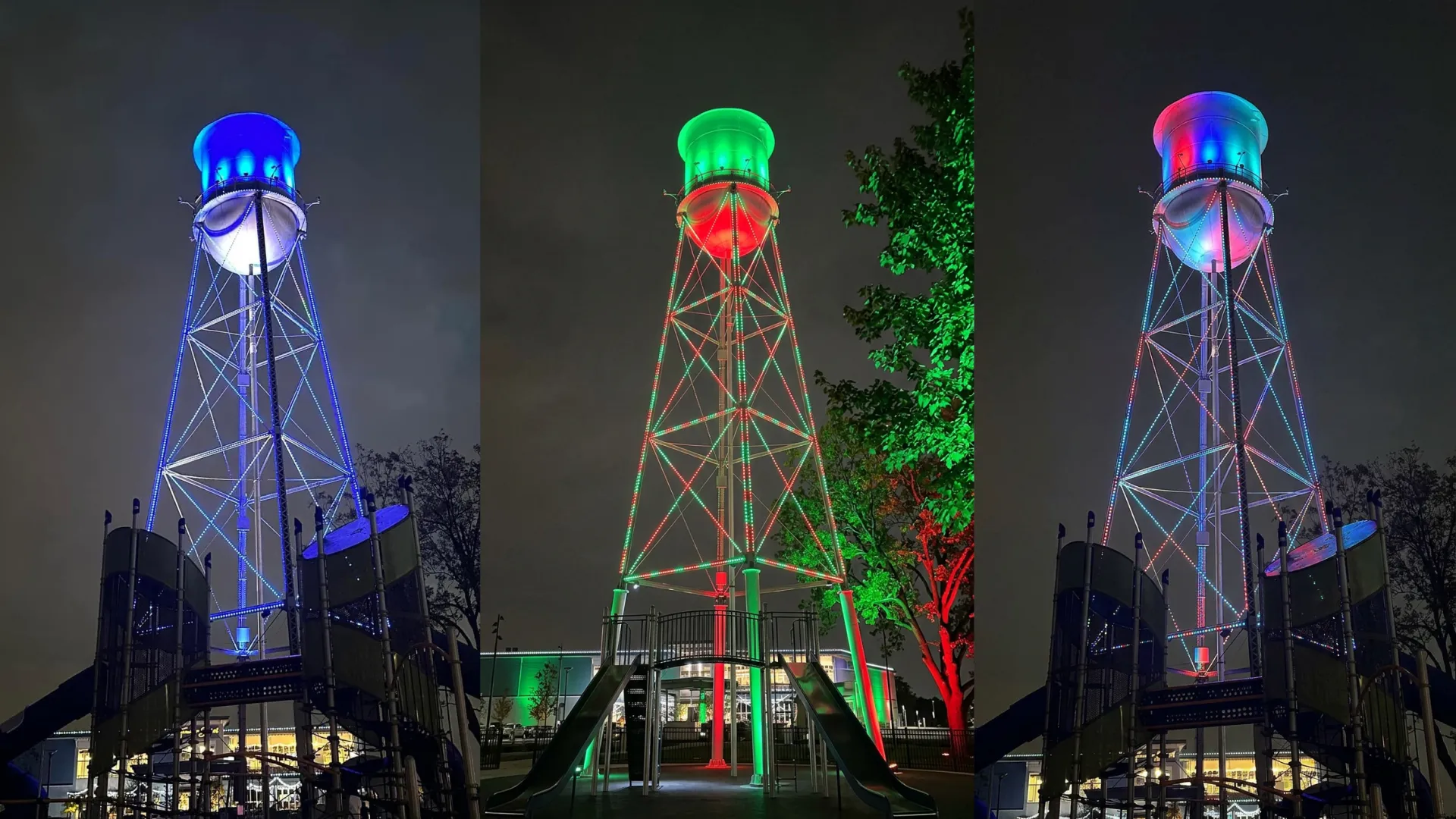

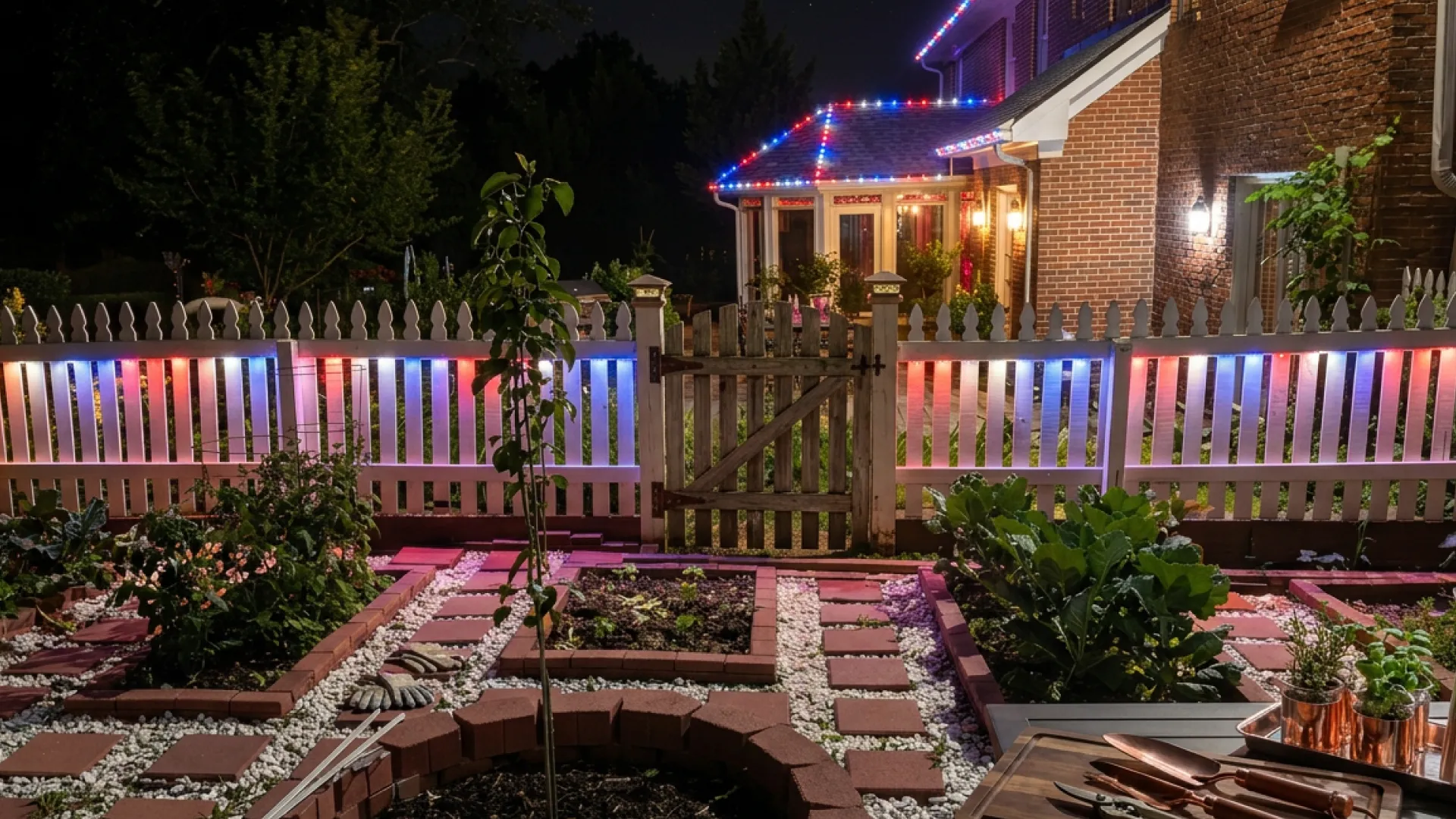

10+ applications – rooflines, fences, pergolas, bridges, pool-cages, water towers...
Scalability with Most Versatile Track Lighting
