THE RIDGE 35mm RGBW (10” spacing)
THE RIDGE 35mm RGBW (10” spacing)
Fast to install. Built to run long.

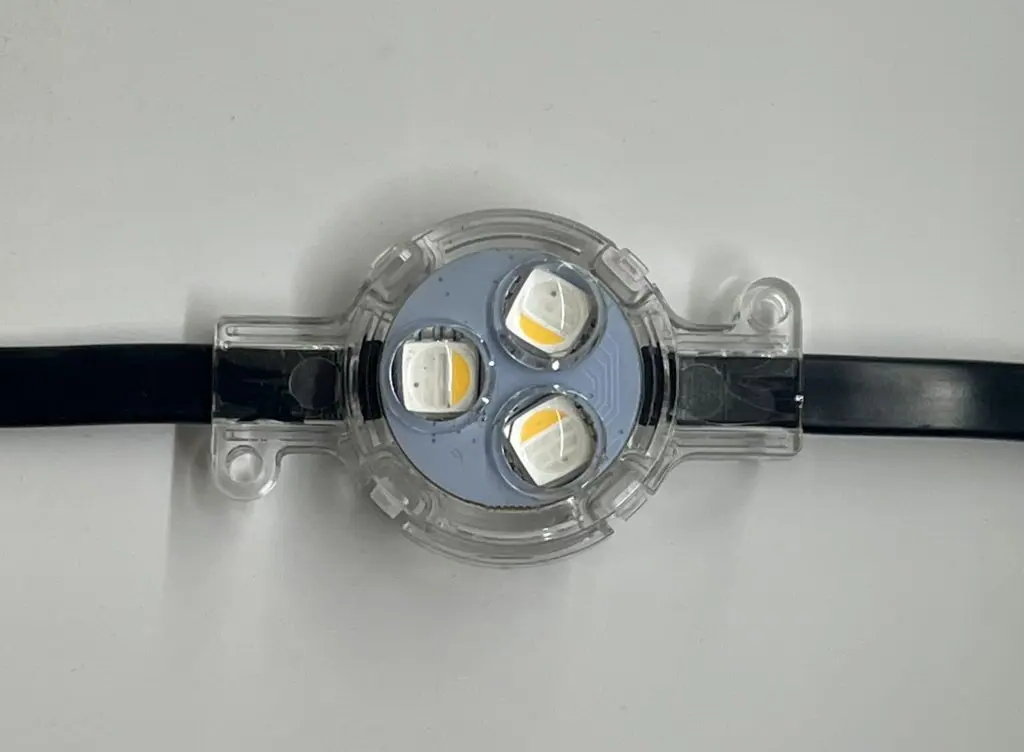

The Ridge is BlueHopper’s 35mm RGBW puck light, engineered for permanent roofline installation and controlled through MeshTek’s Bluetooth mesh network. Each fixture is fully connectorized — ends snap together with no cutting, no splicing, and no manual wire connections in the field.
Through the MeshTek controller and app, The Ridge delivers millions of colors, a full library of light shows and scenes, and real-time scheduling — all running on BlueHopper’s HyperLux firmware for verified, consistent output across every run.
Available in 1s / 2s / 5s.
1s / 2s / 5s
Available in three spacings
UL Approved
Independently tested and listed
Plug & Play
Connectorized ends, no manual connections
400 Lights
Across two controller legs, no power-injection point — covers 97% of projects
Custom Color-Matched Finishes
Two-Part Serviceable Track
Plug & Play, No Splicing
HyperLux® Verified Firmware
Digitally Addressable RGBW
Weather-Proof & UL Approved
Energy-efficient consumption.
Long-lasting LED lifespan.
Dynamic color-changing modes.
Weather-resistant casing.
Easy plug-and-play setup.
Broad dimming range capability
| Input Voltage Range | 8V – 26V DC |
|---|---|
| Standard Supply Voltage | 24V DC (Using MeshTek-provided 24V DC MeanWell Power Supply) |
| Operating Temperature | -22°F to 140°F |
| Dimensions | 50 × 11.4 × 8.9 mm (±0.2 mm) |
| LED Type | Digitally Addressable RGBW |
| Color | Clear |
| IP Rating | IP65 |
| Light Output | 16 Million Colors with Smooth Dimming |
| HyperLux® Technology | Yes |
| White Color Temperature Range | 3000K – 7500K |
| Track System | UV-Protected Track with Base and Lid |
| Certifications | UL Listed |
| Connection Type | Plug & Play |
The Lumen Math Doesn't Lie
Some competitors claim 130+ lumens from a 1W puck — physically impossible at real-world efficiency; we publish our actual ~40 lm RGBW-on output, sphere-verified, so you can sell with confidence.
| Channel | Ridge | Ordinary Puck | Ridge vs Ord. |
|---|---|---|---|
| The Puck sphere-verified |
35mm RGBW Ridge
|
30mm Puck
|
Honest, channel by channel |
| Red | 16.03 | 5.40 | 3.01X |
| Green | 36.38 | 14.70 | 2.48X |
| Blue | 8.82 | 3.57 | 2.28X |
| White | 46.77 | 18.90 | 2.49X |
| Power Insertion | 400 lights | 36 / 72 lights | 5.55X / 2.72X |
| Voltage | 24V | 12V / 24V | — |
| Plug & Play | Yes | Splicing | — |
| Price | Login to store | 15% to 25% Better Gross Margin |
The Aluminum Track (4X10" Spacing)
Ten major finishes are carried in-house and ship from Dallas, covering roughly 85% of jobs with no wait on common colors.
For anything outside the standard deck, BlueHopper color-matches any sample or code with a lead time of about three weeks.
10 Major Colors
Built for the Crew
The two-part track mounts the base first, drops the lights in, and snaps the cover on — fewer steps and less fumbling on the ladder.
Because the cover pops off independently, any fixture can be swapped without tearing down or re-mounting the run.
