The Apex
The Apex

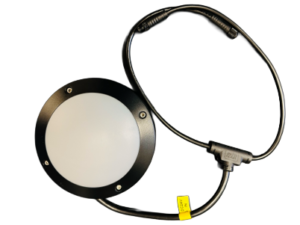

The Apex unifies architectural accent lighting with roofline lighting on the same controller and line as the Ridge and Spectra — no separate systems, no separate wiring. It’s a connectorized, plug-and-play fixture putting out 800 lumens on HyperLux®, available in white or black to match any soffit or fascia. Because it shares a line with your other BlueHopper products, you can mix and match fixture types on a single job without adding a second controller.
Energy-efficient consumption.
Long-lasting LED lifespan.
Dynamic color-changing modes.
Weather-resistant casing.
Easy plug-and-play setup.
Broad dimming range capability
Weather-Proof & UL Approved
One Controller, Any Combination
HyperLux® Verified Firmware
Plug & Play, No Splicing
Unifies with Ridge and Spectra
White or Black Finish
800 Lumens, HyperLux® Powered
| Standard Supply Voltage | 24V DC (using MeshTek provided 24V DC MeanWell Power Supply) |
|---|---|
| Power (Max) | 12W |
| Operating Temperature | Up to 104°F |
| Dimensions (mm) | 150mm × 45mm |
| LED Type | Digitally addressable RGBW |
| HyperLux Technology* | Yes |
| IP Rating | IP65 |
| Light Output | 16 million colors and dimmable |
| Whites Color Temperature Range | 3000K to 7500K |
| Track System | UV protected track with base and lid |
| Certifications | UL Listed |
| Application | Soffit Light |
| Connection Type | Plug & Play |
| Surge Protection for Powerline | 8/20uS @600W (IEC 61000-4-5) |
| Other Protections | Transient Protection, Reverse Polarity Protection |
