RGB+50W Flood Tile
RGB+50W Flood Tile

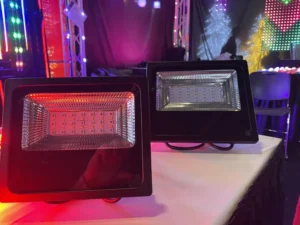

Brighten up your space with the 50W Color-changing Flood Tile, an individually controllable, 16-bit RGBW, UL listed, IP66 workhorse. Use MeshTek, WEC, ArtNet or E1.31 to control. Group & sync with your permanent, holiday & landscape lighting.
Applications
- Up-lighting trees
- Wall-washers
- General landscape lighting
- Stage lighting
- Barn lighting
Options
Chipset options: RGB+3W, RGBW+3W, RGBW+4W (16-bit), WS2811 (8-bit)
| Output | |
|---|---|
| LED Type | SMD5054 |
| LED Channels | R-G-B-W (or R-G-B ws2811 option) |
| LED Quantity | 42 |
| Greyscale | 16-bit, 65,536 dimming levels* ; (8-bit ws2811 option) |
| Beam Angle | 120-degrees |
| Chipset | RGBW+2, WS2811 (RGB 8-bit option) |
| Control | |
| Individually Addressable | Yes |
| Control Systems | MeshTek 1-Port and 4 Port Controllers with BlueRoots App |
| Max Lights before Power Injection | 2 per line/run |
| Max Distance before Power Injection | 100-FT (20-FT Data limit before boosters) |
| Electrical & Safety | |
| Input Voltage | 24 VDC |
| Current | 2 Amps |
| Power | 50 Watts |
| Wire | 2x 22 AWG + 2x 18 AWG, 4C, UV protected; (ws2811 = 3C UV) |
| Inline Power Injection | via Power T+’s & RGB+4A-24V |
| Certifications | (c)UL listed, IP66, CE |
| Physical | |
| Size | 9 x 7.5 x 1.75 inches |
| Weight | 1.1 lbs. |
| Housing | Aluminum, powder coated base; glass cover |
| Connector Type | LLT twist-lock |
| Mounting Option | Yoke with 2x screw hole mounts |
| Operating Temperature | Neg -25 to +60 Cel. / Neg -14 to +140 F |
