Repeater
Repeater

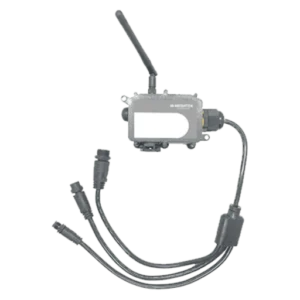

The MeshTek Bluetooth repeater acts as a long range extender required in large projects or for extended control range requirements of over hundreds of meters. With a simple app based commissioning, the repeater becomes the part of the networked devices under the network, further enhancing the range of the Bluetooth mesh. It also has built-in real time scheduling features required for scheduling MR16, PAR36, and G4 bipin bulbs.
Bluetooth signal booster (device to device, device to gateway, device to app)
Embedded with Real-Time Scheduling
Over the Air Firmware Update
Control with Web, iOS
| Gateway Specifications | |
|---|---|
| Supply Voltage | 10-24VDC |
| Control Method |
Bluetooth mesh via Smartphone or Gateway |
| Open-Air Control Range | 200M |
| Certifications | FCC, IC |
| Scheduling |
Weekly, annually, calendar wise, Dawn & Dusk |
| IP Rating | IP64 |
| Dimensions | 65 x 50 x 18 (mm) |
| Platform Support |
The BlueHopper Lighting Automation Platform is Supported By 35+ Patents |
