Mini-Color Tile
Mini-Color Tile

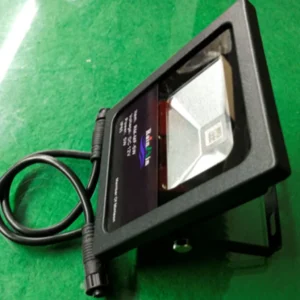

Minleon’s RGB Color Tile is akin to a 12Vdc, RGB Mega Pixel, or Mini-Flood light Mesh control with mounting yoke and garden stake. Individually control up to 10 fixtures with a single power supply, and before power injection.
Options
WS2811 chipset: 8-bit, 256 greyscale
RGB+/UCS chipset: 16-bit, 65536 greyscale
| Output | |
|---|---|
| LED Type | COB10WRGB |
| LED Channels | R-G-B |
| LED Count | 1 |
| Greyscale | 16-bit, 65,536 dimming levels* |
| Viewing Angle | 180-degrees |
| Control | |
| Individually Addressable | Yes |
| Control Systems | MeshTek 1-Port and 4 Port Controllers with BlueRoots App |
| Max Lights before Power Injection | 10 |
| Max Distance before Power Injection | 100-feet |
| Electrical & Safety | |
| Input Voltage | 12 VDC |
| Current | 0.42 Amps / lamp |
| Power | 5 Watts |
| Wire | 18 AWG, 3C, UV protected |
| Inline Power Injection | via Rainmin Power T+’s |
| Certifications | IP65 |
| Physical | |
| Housing | Aluminum, powder coated base; glass cover |
| Bulb Style | Frosted |
| Size | 4.65 x 5 x 1.6” |
| Weight | 0.88 lbs. |
| Connector Type | LLT twist-lock |
| Mounting Option | Ground stake, 180-degree adjustable |
| Lead/End Wire Length | 6” (standard) |
| Operating Temperature | Neg -25 to +55 Cel. / -13 to 130 Far. |
