Flex Strip
Flex Strip

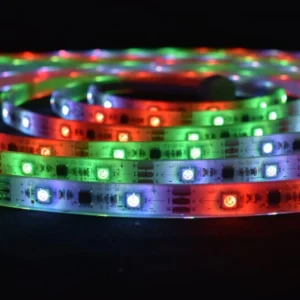

Minleon’s RGB Flex Strip offers individual control through Meshtek . Encased in durable silicone, it’s suitable for outdoor use and boasts a UL listing. Sold in 5-meter lengths, this strip features two sets of 140 RGB-LEDs, following a 2 x 1 LED/chip distribution. It also includes designated marks for safe cutting, ensuring a tailored fitment.
| Output | |
|---|---|
| LED Type | SMD 5050 |
| LED Channels | R-G-B |
| LED Count | 28 per meter |
| LED-to-Chip Ratio | 2-to-1 |
| Greyscale | 16-bit, 65,536 dimming levels* |
| Control | Individually Addressable |
| Control Systems | MeshTek 1-Port and 4 Port Controllers with BlueRoots App |
| Max Lights Before Power Injection | Approx. 125L |
| Max Distance Before Power Injection | Approx. 100-feet |
| Electrical & Safety | |
| Input Voltage | 12 VDC |
| Current | 0.028 Amps / pixel |
| Power | 0.336 Watts / pixel |
| Wire | 20 AWG, 3C, UV Protected |
| Inline Power Injection | via BlueHopper Power T+’s & RGB+5A-12V |
| Physical | |
| Width | 1-inch |
| Pitch | 1-inch |
| Housing | Silicone |
| Connector Type | LLT Twist-Lock |
| Lead/End Wire Length | 6” (Standard) |
| Operating Temperature | Neg -20 to +50°C / Neg -4 to +122°F |
