Dots+22
Dots+22
• Individually controllable via Meshtek controllers
• 22mm, 2-LED pixels

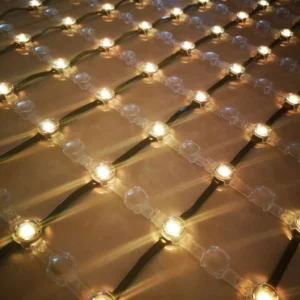

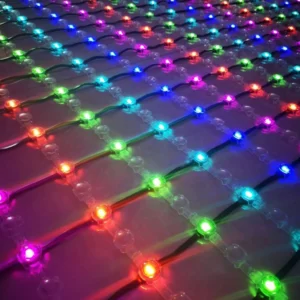

• mounting brackets, for low-res pixel screens & curtains
Options
Perimeter lighting
Light curtains
Grids, walls, matrixes
Trees-of-light
Wire frames
Holiday décor
Architectural lighting
Landscape lighting
Chandeliers
| Output | |
|---|---|
| LED Type | SMD3535 |
| LED Channels | R-G-B |
| LED Count | 16-bit, 65,536 dimming levels* |
| LED Quantity | 2 |
| Viewing Angle | RGB+2 (4-wire; DoubleDATA line) |
| Control | Individually Addressable |
| Control Systems | MeshTek 1-Port and 4 Port Controllers with BlueRoots App |
| Max Lights Before Power Injection | Approx. 125L |
| Max Distance Before Power Injection | Approx. 100-feet |
| Electrical & Safety | |
| Input Voltage | 12 VDC |
| Current | 0.025 Amps |
| Power | 0.3 Watts |
| Wire | 20 AWG, 4C, UV Protected |
| Inline Power Injection | via 4-wire Power T+’s & RGB+5A-12V |
| Certifications | (c)UL Listed, IP65, CE |
| Physical | |
| Diameter | 1.75 x 0.625” |
| Weight | Approx. 0.256 oz. per bulb |
| Housing | Polycarbonate |
| Mounting Bracket | Yes, 5-pixel connectable clips, with guy line support |
| Connector Type | LLT Twist-Lock |
| Operating Temperature | Neg -20 to +50°C / Neg -4 to +122°F |
