Dot+35L
Dot+35L

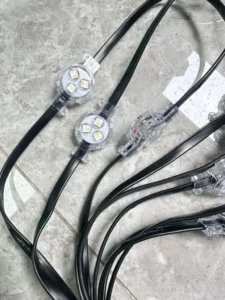

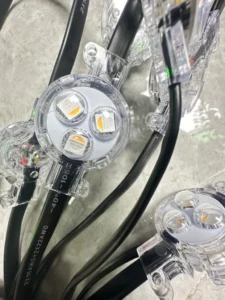

At 28 lumens on warm white, the 35mm RGBW+ Dot is one of our brightest pixels. 3-LEDs & a magnified lens allow us to point the light string down, and light up the architecture, or mount high above the viewing area. Smooth 16-bit, HD color-blending. 4-wire/DoubleDATA. Optional mounting track Works with all MeshTek, Minleon, ArtNet & E1.31 controllers. Sturdy, insulated cable made for permanent, outdoor use. IP66, (c)UL listed.
Applications
- Commercial rooflines
- Residential rooflines
- Carnivals
- Candy canes
- Bridges
- General perimeter lighting
Options
- Wire color: black, clear, white, sand
Pro Tips
- Limit runs to approx. 150L or 150-FT, unless injecting power. Dot 35’s are brighter & will take slightly more power than Minleon Pebble Lights (where the guideline is 200L or 200-FT).
| Output | |
|---|---|
| LED Type | SMD5050 |
| LED Channels | R-G-B-W |
| LED Count | 16-bit, 65,536 dimming levels* |
| LED Quantity | 3 |
| Chipset | RGBW+2 (4-wire; DoubleDATA line) |
| Control | Individually Addressable |
| Control Systems | MeshTek 1-Port and 4 Port Controllers with BlueRoots App |
| Max Lights Before Power Injection | Approx. 150L |
| Max Distance Before Power Injection | Approx. 150-feet |
| Electrical & Safety | |
| Input Voltage | 24 VDC |
| Current | 0.02 Amps |
| Power | 0.45 Watts |
| Wire | 2x 22 AWG + 2x 18 AWG, 4C, UV Protected |
| Inline Power Injection | via 4-wire Power T+’s & RGB+4A-24V |
| Certifications | (c)UL Listed, IP66, CE |
| Physical | |
| Diameter | 35mm |
| Weight | Approx. 1.0 oz. per pixel |
| Housing | Polycarbonate |

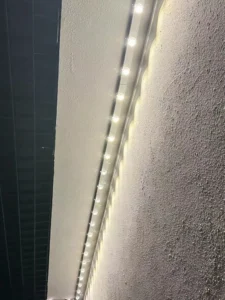

| Mounting Bracket | Yes, 2x screw hole mounts; plastic track (add-on) |
| Connector Type | LLT Twist-Lock, 4-pin |
| Operating Temperature | Neg -25 to +60°C / Neg -14 to +140°F |
