Domes
Domes

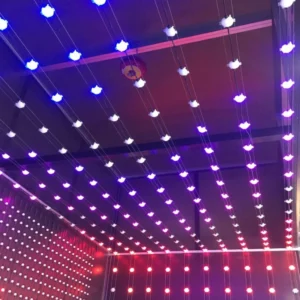

Heavy-duty constructed with integrated mounting options on the solid base, these 5 x RGB-LED Domes are ideal for permanent architectural installation. Each can be individually controlled through Meshtek devices. They operate on 24Vdc, ensuring they are long-running with minimal power boosts.
Individually Addressable
Dynamic Color Blending
Intuitive App Interface
Weatherproof Durability (IP65)
Extended LED Lifespan
| Output | |
|---|---|
| LED Type | SMD5050 |
| LED Channels | R-G-B |
| Greyscale | 16-bit, 65,536 dimming levels |
| LED Quantity | 5 |
| Viewing Angle | 180-degrees |
| Control | Individually Addressable |
| Individually Addressable | Yes |
| Control Systems | MeshTek 1-Port and 4 Port Controllers with BlueRoots App |
| Max Lights Before Power Injection | Approx. 150L |
| Max Distance Before Power Injection | Approx. 150-feet |
| Additional Control Systems | NDB+ (Mesh, E1.31…), MC+ |
| Electrical & Safety | |
| Input Voltage | 24 VDC |
| Current | 0.022 Amps |
| Power | 0.528 Watts |
| Wire | 18 AWG, 3C, UV protected |
| Inline Power Injection | via Minleon Power T+’s & RGB+4A-24V |
| Certifications | (c)UL pending, IP65 |
| Physical | |
| Diameter | 2.5 inches |
| Weight Approx. | 0.133 lb./lamp |
| Housing | Polycarbonate |
| Bulb Style | Frosted |
| Connector Type | LLT twist-lock |
| Mounting Options | Guy line clips, screw holes |
| Operating Temperature | Neg -20 to +50 Cel. / Neg -4 to +122 Far. |
